Graco InvisiPac 24R084 Air Adjustment Lock Overview

The Graco InvisiPac 24R084 Air Adjustment Lock panel enables locking access to the air adjustment screws.

Note: Screws are part of the base system and are not included in the kit.

What's Included:

• Panel, Lock, Air Control X 1
• Bracket, Lock, Air Control X 1

Installation Instructions:

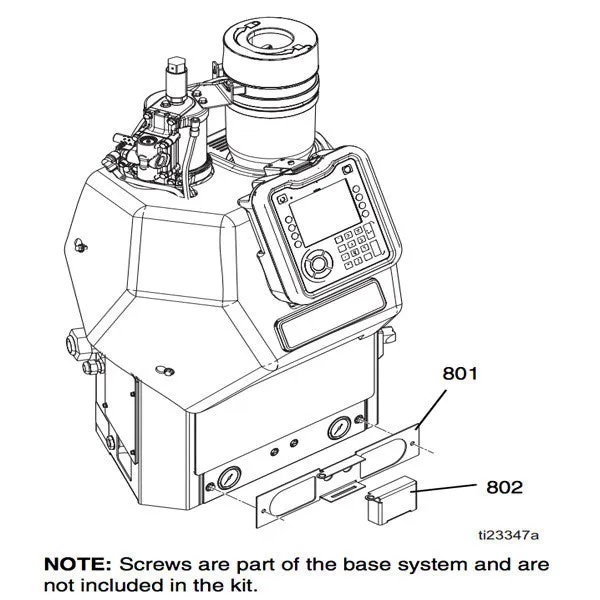

1. Remove screws from system air panel.
2. Use screws to install panel (801).
3. Snap bracket (802) into panel (801).
4. Insert lock through hole in panel and bracket to lock
5. access to the air controls. Lock not included in kit.
